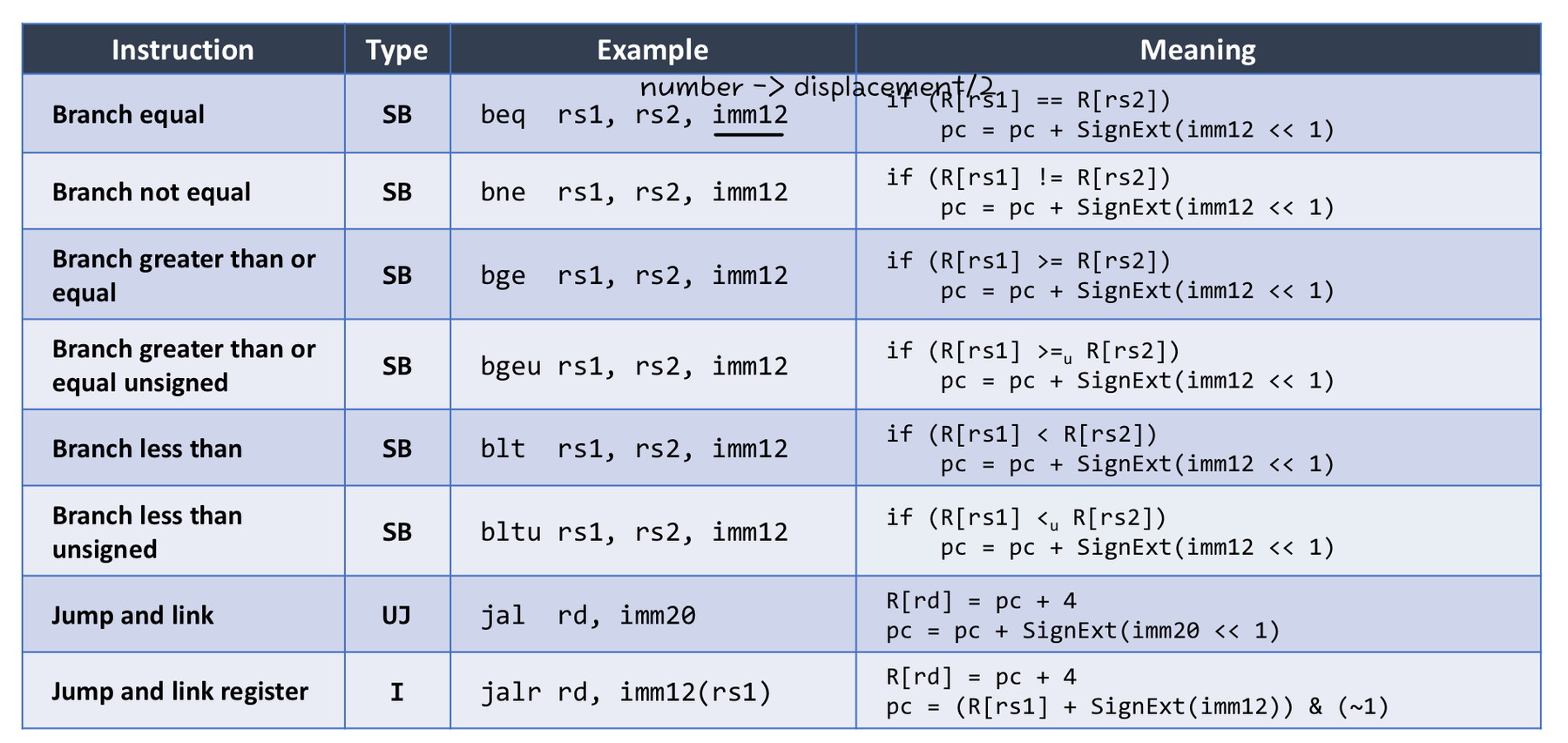

Conditional Operations

Jump to the labeled instruction, if the given condition is == true==

JAL vs JALR

• JAL: Stores the address of the next instruction (PC + 4) in rd and jumps to PC + imm * 2.
  • Procedure call (jal ra, func)
• JALR: Stores the address of the next instruction (PC + 4) in rd and jumps to R[rs1] + imm.
  • Procedure return (jalr x0, 0(ra))

Why does only JALR not use *2?

JALR is an instruction in the I format. Applying a >> 1 shift to imm12 here would require additional hardware implementation, as I format instructions typically do not require this operation. Additionally, the jump distance can be longer compared to other branch instructions due to the use of a register in JALR.

Example

if (i == j)
	f = g + h;
else
	f = g - h;

// i in x22, j in x23
// f in x19, g in x20, h in x21

while(A[i] == k)
	i += 1;

// i in x22, k in x24
// address of A[] in x25

long max (long x, long y) {
	if (x > y)
		return x;
	else
		return y;
}
// x is in a0
// y is in a1

long fact_do (long x) {
	long result = 1;
	do {
		result *= x;
		x = x - 1;
	} while (x > 1);
	return result;
}
// x is in a0

long fact_while (long x) {
	long result = 1;
	while (x > 1) {
		result *= x;
		x = x - 1;
	}
	return result;
}
// x is in a0
